■Specification(基本规格) ◎Total Rotation Angle -----------280° 全回角度 ◎Resistance Value---------500-1M 标准电阻值 ◎Tolerancee----------±10%/±20% 阻值偏差 ◎Power Rating-------0.05W(B Taper) 额定功率 ◎Rotation Life--------10000 Cycles 回转寿命

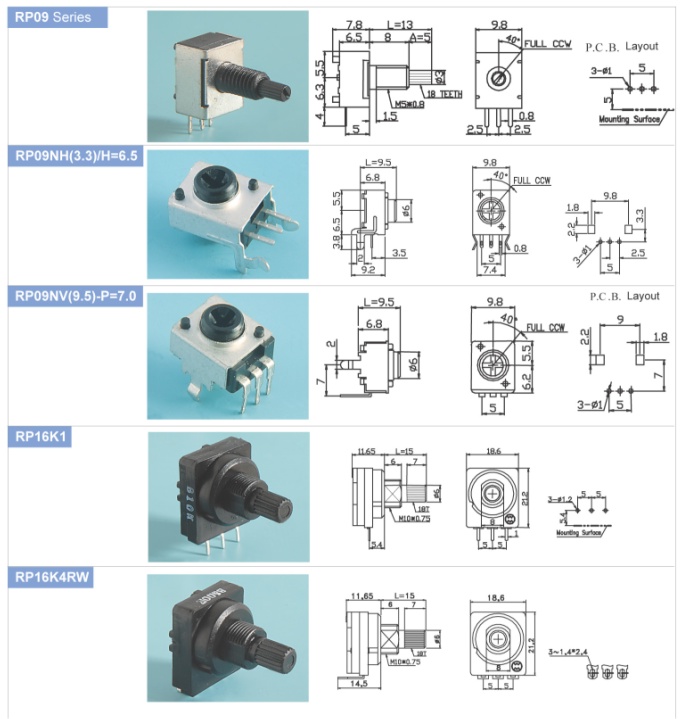

■Dimensions尺寸图/P.C.B.mounting hole detail 线路板安装孔尺寸图
我們提供各類可變電阻客製化設計服務 We offer special design of all kind potentiometer.
